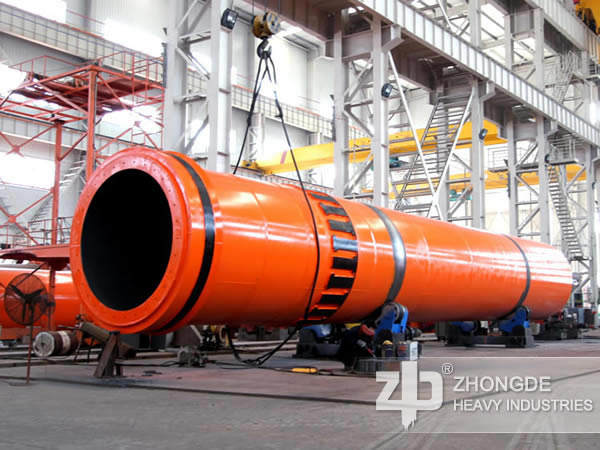

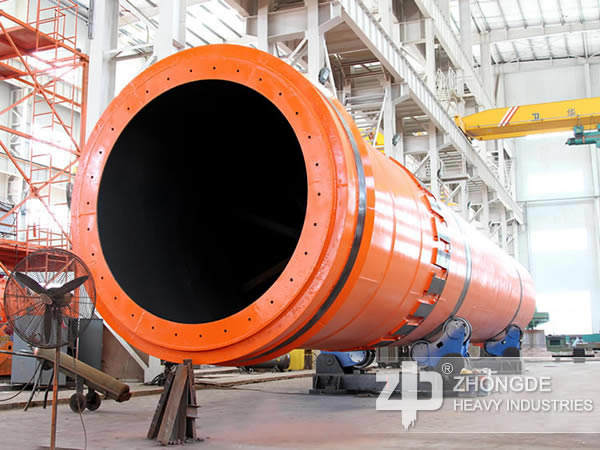

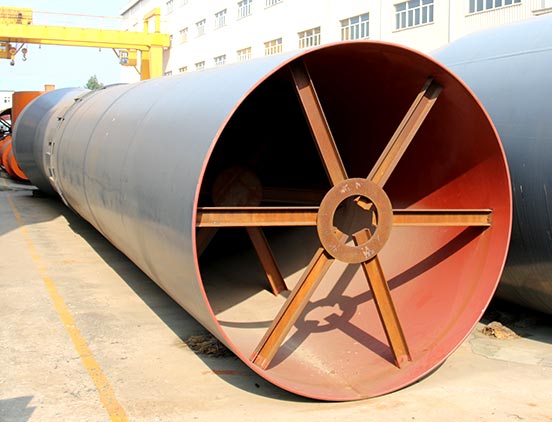

Rotary Drum Cooler
Get PriceFactory-direct Sale
Production Capacity2-75t/h
Processing Material:cement clinker, etc.
1.After cooled by rotary drum cooler, fertilize can lose about 3% water, realizing cooling and drying effect. If rotary drum cooler works with dryer, its cooling speed will be improved, its labor intensity will be reduced, and its yields will be increased. Besides fertilizer, rotary drum cooler can also be used foe cooling other powder and granular materials. This equipment is compact, high efficiency, reliable and adaptable.
2.Rotary drum cooler adopts counter-current working method. It means that materials and air move backward. Materials enter in from the top of the equipment, after heating, drying and cooling segments from top to bottom, and they are discharged from the bottom at last.
Advantages of Rotary Drum Cooler
1. Space savings. Sanitation benefits
2. Energy efficient. Lower maintenance
3. Energy-saving, even cooling, and easy to clean and maintain.
4. Counter-current flow design to optimize cooling efficiency.
5. Durability in construction for long life.
| Spec./m (Dia×Length） |
Capacity (t/h) |
Installation Obliquity (%) |
| Φ1.5×15 | 2～3 | 3～5 |
| Φ1.5×20 | 3～4 | 3～5 |
| Φ1.8×18 | 4～6 | 3～5 |
| Φ2.0×22 | 7～8.5 | 3～5 |
| Φ2.2×18 | 7～8.5 | 3～5 |
| Φ2.2×22 | 8～10 | 3～5 |
| Φ2.4×24 | 12～15 | 3～5 |
| Φ2.5×25 | 15～20 | 3～5 |
| Φ2.8×28 | 16～22 | 3～5 |
| Φ3.0×30 | 20～25 | 3～5 |
| Φ3.2×36 | 28～32 | 3～5 |
| Φ3.3×40 | 32～36 | 3～5 |
| Φ3.6×36 | 35~38 | 3~5 |
| Φ4.0×36 | 50~60 | 3~5 |
| Φ4.0×45 | 60~70 | 3~5 |
| Φ4.5×50 | 70~75 | 3~5 |
