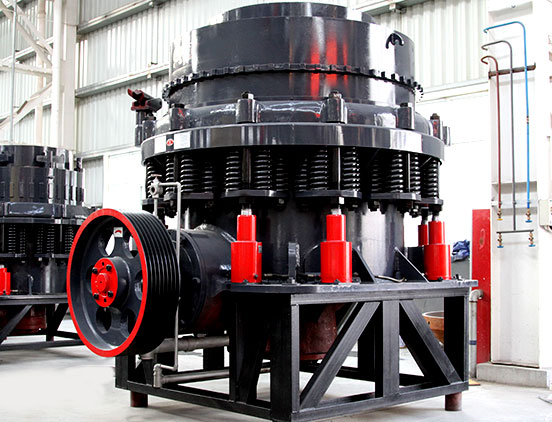

Cone Crusher

Introduction of Symons Cone Crusher

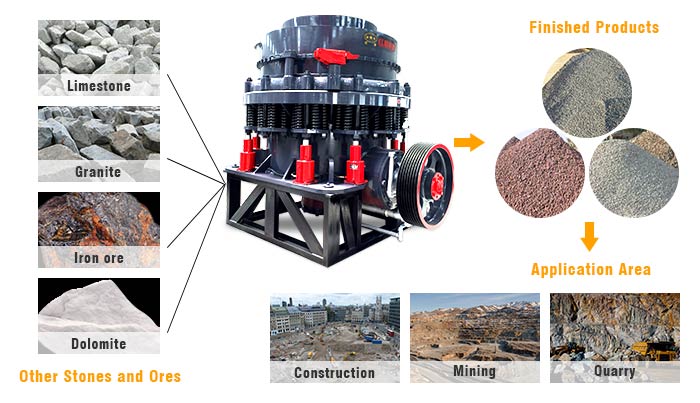

1.Symons cone crusher,also known as short head cone crusher and standard cone crusher, is widely used to crush the stones and ores with medium hardness and high hardness such as basalt, granite, limestone, gravel, quartz, iron ore, copper ore, gold ore and other minerals in mining, construction, road building,chemical and other fields.

2.The popular Symons cone crusher model is 4.25(4 1/4) symons crusher, namely our PSG 1300 model, 3 ft symons cone crusher (PSG 900 model), 7 ft symons cone crusher(PSG 2100 model)-reference to the following technical data. We have the specific symons crusher model you need.

2.It adopts lubrication grease sealing system and the overload protection device of spring safety system guarantee the service life of the machine.

3.According to the chamber type, Symons cone crusher includes standard type and short head type. Generally, the standard type is suitable for primary and medium crushing;while the short head type with sharpe cone is suitable for medium and fine crushing of the materials.

Advantages of Symons Cone Crusher

1.High Production Efficiency

It adopts modular design, achieve the change among primary, secondary and fine crushing of materials by adjusting the chamber type, improving the production efficiency.

2.High Automatic Level

It adopts a set of external lubrication system that includes oil pump,oil tank and pipeline.If the oil temperature is too high or the oil flow rate is too slow, the crusher will shut down automatically.

3.Easy to Adjust Discharging Size

The hydraulic adjustment structure make it easy to adjust the discharging size.

4.Unique Structure,Long Service Life

High sealing performance,downtime is greatly reduced by insurance device
