Production Capacity1-20t/h
Output Size400-3000 mesh
Processing Material:gypsum, bauxite, quartz, limestone, calcium carbonate, etc.

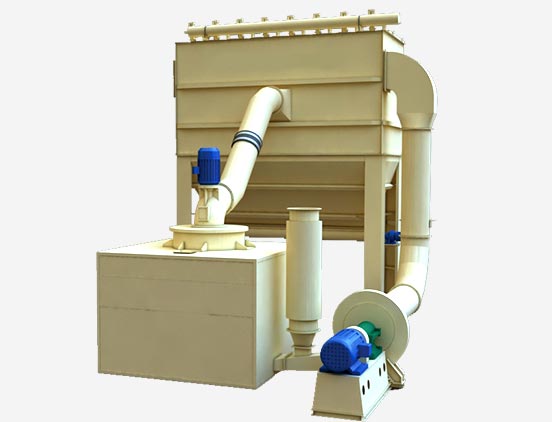

1.Three-ring and medium speed micro powder mill is the new product developed by our company, it is the professional advanced dry grinding equipment for super-fine powder grinding.
2.It is used to process the brittle and non-flammable and non-explosive materials whose Moh's hardness is less than 5 level,such as calcium carbonate,barite, aedelforsite, kaoline, rare erath ore, hematite, talcum, feldspar, slag and so on.
3.It integrates material grinding and powder classification on one machine,but they operate alone.At the same time,it is also equipped with dust removal device.It is the ideal environment protection equipment.

1.Adjustable fineness of final product from 400-3000 mesh
2.Strong adaptability to materials,wide application
3.Compact structure,low costs
4.Energy saving,environment protection
| Mesh Model | ZDM-1021 | |
| Output(kg/h) | Power(kw/h) | |
| 400 | 6000-7000 | 22 |
| 800 | 3000-3500 | 45 |
| 1250 | 2000-2500 | 70 |
| 1500 | 1800-2000 | 73 |
| 1800 | 1500-1800 | 90 |
| 2500 | 1200-1300 | 120 |
| 3000 | 900-1100 | 145 |
| Mesh Model | ZDM-800 | |
| Output(kg/h) | Power(kw/h) | |
| 400 | 4000-5000 | 27 |
| 800 | 1800-2100 | 60 |
| 1250 | 1200-1500 | 95 |
| 1500 | 1000-1200 | 110 |
| 1800 | 800-1000 | 136 |
| 2500 | 600-800 | 175 |
| 3000 | 500-700 | 200 |
